Vanwege de checkering heeft deze handguard een supergoede grip

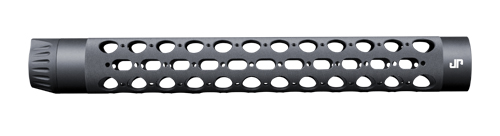

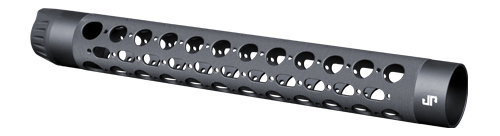

MK III Modular Hand Guard
Length: XL (15.5" OAL)
Platform: AR-15/M16
Tube Style: RC
Machined from 6061 T6 aluminum with a 4140 steel barrel nut, this mid-length hand guard includes two JPHGS quick-detach sling studs.
Inside Diameter: 1.75"
Outside Diameter: 2"
Overall Length: 15.5"
Weight: 5.616 oz.(barrel nut) / 9.200 oz.(tube)
Color: Matte black hard coat anodizing
Black only in stock
Tactical Rail Selection (not included ! )
All rails are anodized black regardless of any color option upgrade.
Full-length 12:00 rails or the 2-inch front sight rail (JPTR-FS) can be attached directly to the top of the hand guard tube while two- and four-inch accessory rails can be mounted directly (without backer plates) to the tube at the 6:00, 3:00, 9:00 and 45° positions using the 10-32 flathead screws included with the rail segments. Refer to the table below to determine which rails you need for a given application.
Tube Position | JP Tactical Rail |
12:00 | JPTR-XL, JPTR-R, JPTR-M, JPTR-FS |
6:00 | JPTR-LRC, JPTR-SRC |
3:00, 9:00 and 45° | JPTR-LRC, JPTR-SRC |
